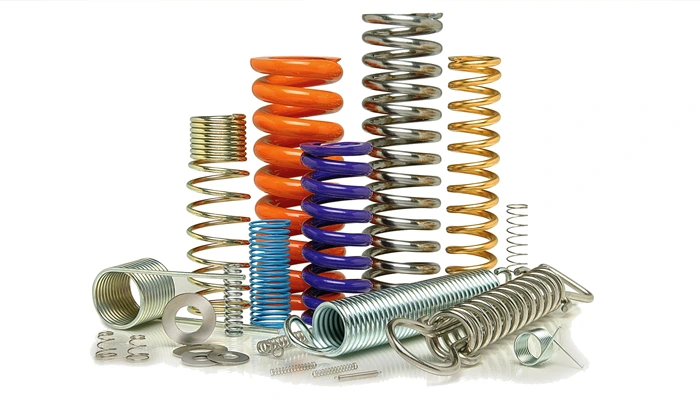

Compression springs
Compression springs are coil springs that hold mechanical energy in their packed states. At the point when these springs experience a pressure load, they pack and become more compact, catching and putting away critical likely force.
Uses of compression springs:
- These are also very necessary for mining and drilling equipment
- Mattresses also requires these types of springs in them to give more comfort and relaxation.
- Long Helping Life.
- Electronic toys are also the ones which requires compression springs, and there are many other types of other machineries where these types of springs are very useful.
Formula of Compression Springs:
Formula for Compression springs:
- 1. Solid height formula:
Solid Height = Wire Diameter x (Total Coils + 1)
Lsolid = d(N+1) - 2. Spring diameter formula:
Inner Diameter = Outer Diameter - 2 (Wire Diameter)
D inner = D outer - 2d
Outer Diameter = Inner Diameter + 2 (Wire Diameter)
D outer = D inner + 2d - 3. Spring index formula:
Index = Mean Diameter ÷ Wire Diameter
I = D ÷ d - 4. Wire length formula:
Coil Wire Length = Mean Diameter x Pi
cL = Dπ - 5. Total Wire Length = Coil Wire Length x Total Coils
tL = cL x N
- 6. Load and travel formula:
Travel = Load ÷ Rate
T = L ÷ k - 7. Load = Travel x Rate
L = Tk
Types of Compression Springs:
1. Closed Square: A closed square hook is a type of hook that is commonly used on the ends of springs...
2. Closed Ground: Closed loop ground spring hooks, also known as closed loop grounding spring hooks...
3. Closed Ends: Closed end spring hooks are a type of spring hook that have a closed loop or coil on one end...
4. Open Ends: Open ends spring hooks are a type of spring hook that have one or both ends of the hook left open...
Merits of compression springs:
- Forestalling one more part's development: The ability to prevent one more part from moving is one of pressure springs' most prominent benefits.
- Returning a part to the right position: Entryway locks on the two vehicles and building entryways are an extra benefit that exhibits how oftentimes used and fundamental pressure springs are.
- Applying nonstop strain: One of the most critical and astounding benefits of pressure springs is in battery-worked items.
- Lightweight: Pressure springs are surprisingly lightweight, taking into account how much power they can deliver.
- Reasonable: Most pressure springs are made out of steel and other reasonable metals.
- Upkeep free: A pressure spring requires no support.
Tolerance of compression springs:
Detailed tolerance specifications would be displayed here in table format...
Hose Springs
A hose spring is a type of mechanical spring that is used in hoses or tubing to provide reinforcement and prevent collapse or kinking...
